TRANSIENT VOLTAGE SUPPRESSOR POWER 600 Watt
BREAK DOWN VOLTAGE
6.8 to 550 Volt

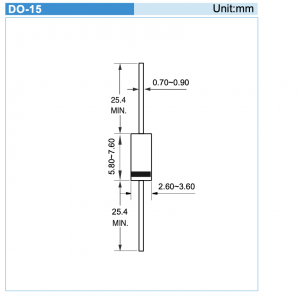

DO-15
Unit:mm
FEATURES
? Glass passivated junction
? Low inductance
? Plastic Material has UL Flammability Classification 94V-O
? Fast response time: typically less than 1.0ps from 0V to BV min
? High temperature soldering : 260°C /10 seconds at terminals
? ESD IEC-61000-4-2 Air ±30kV, Contact ±30kV
? Lead free in compliance with EU RoHS
MECHANICAL DATA
? Case: Molded plastic over passivated junction.
? Polarity: Color band denotes cathode end
P6KE6.8A
P6KE6.8CA
P6KE7.5A
P6KE7.5CA
P6KE8.2A
P6KE8.2CA
P6KE9.1A
P6KE9.1CA
P6KE10A
P6KE10CA
P6KE11A
P6KE11CA
P6KE12A
P6KE12CA
P6KE13A
P6KE13CA
P6KE15A
P6KE15CA
P6KE16A
P6KE16CA
P6KE18A
P6KE18CA
P6KE20A
P6KE20CA
P6KE22A
P6KE22CA
P6KE24A
P6KE24CA
P6KE27A
P6KE27CA
P6KE30A
P6KE30CA
P6KE33A
P6KE33CA
P6KE36A
P6KE36CA
P6KE39A
P6KE39CA
P6KE43A
P6KE43CA
P6KE47A
P6KE47CA
P6KE51A
P6KE51CA
P6KE56A
P6KE56CA
P6KE62A
P6KE62CA
P6KE68A
P6KE68CA
P6KE75A
P6KE75CA
P6KE82A
P6KE82CA
P6KE91A
P6KE91CA
P6KE100A
P6KE100CA
P6KE110A
P6KE110CA
P6KE120A
P6KE120CA
P6KE130A
P6KE130CA
P6KE150A
P6KE150CA
P6KE160A
P6KE160CA
P6KE170A
P6KE170CA
P6KE180A
P6KE180CA
P6KE200A
P6KE200CA
P6KE220A
P6KE220CA
P6KE250A
P6KE250CA
P6KE300A
P6KE300CA
P6KE350A
P6KE350CA
P6KE400A
P6KE400CA
P6KE440A
P6KE440CA
P6KE480A
P6KE480CA
P6KE510A
P6KE510CA
P6KE530A
P6KE530CA
P6KE540A
P6KE540CA
P6KE550A
P6KE550CA
